Bearings, Rod Ends & Retention Hardware

Browse rod ends, jam nuts, Uniballs, bearings, and retaining hardware by measurable interface.

Complete destination

Bearings, Rod Ends & Retention Hardware

Showing products assigned to this exact collection.

Open full filters

Product results

50 products

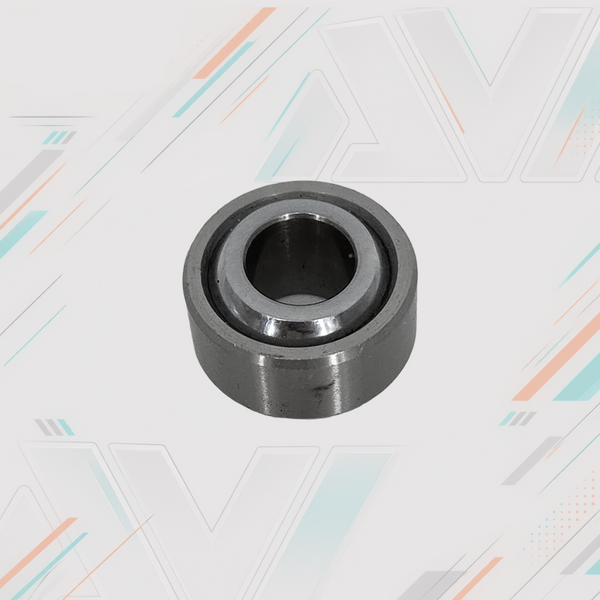

Loose silver-colored uniball viewed at an angle, showing the central bore and outer ring.

Uniball

AIN08T-F1 Heavy Duty Precision Uniball, 1/2" ID x 1-3/32" OD

SKU AVID-AIN08T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
1/2"
Outside diameter
1-3/32"
Width
5/8"
Ball diameter
0.937 in
Chamfer
0.02 in
Misalignment angle
9.5°
Static radial load
28,110 lb
Weight
0.11 lb
Construction
heavy duty precision spherical bearing
Included quantity
1

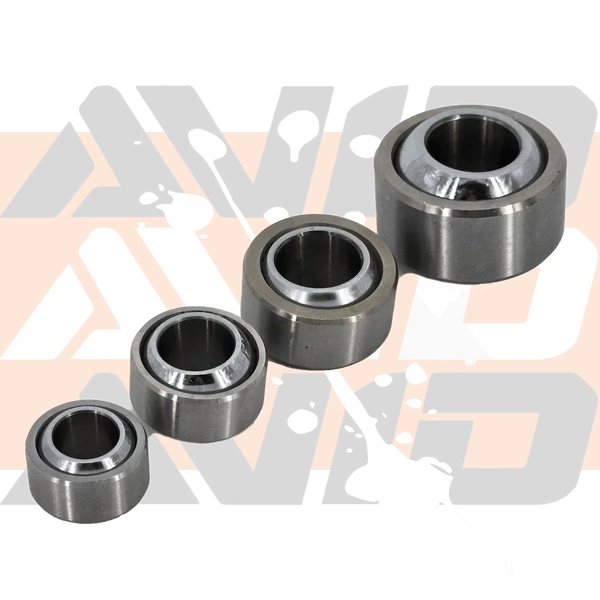

AIN10T-F1 Heavy Duty Precision Uniball | AVID Racing

Uniball

AIN10T-F1 Heavy Duty Precision Uniball, 5/8" ID x 1-5/16" OD

SKU AVID-AIN10T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
5/8"
Outside diameter
1-5/16"
Width
3/4"
Ball diameter
1.125 in
Chamfer
0.03 in
Misalignment angle
12°
Static radial load
37,930 lb
Weight
0.165 lb
Construction
heavy duty precision spherical bearing
Included quantity
1
AIN12T-F1 Heavy Duty Precision Uniball | AVID Racing

Uniball

AIN12T-F1 Heavy Duty Precision Uniball, 3/4" ID x 1-1/2" OD

SKU AVID-AIN12T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
3/4"
Outside diameter
1-1/2"
Width
7/8"
Ball diameter
1.312 in
Chamfer
0.03 in
Misalignment angle
10°
Static radial load
48,675 lb
Weight
0.252 lb
Construction
heavy duty precision spherical bearing
Included quantity
1
AIN14T-F1 Heavy Duty Precision Uniball | AVID Racing

Uniball

AIN14T-F1 Heavy Duty Precision Uniball, 7/8" ID x 1-1/2" OD

SKU AVID-AIN14T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
7/8"
Outside diameter
1-1/2"
Width
7/8"
Ball diameter
1.312 in
Chamfer
0.03 in
Misalignment angle
6°
Static radial load
48,675 lb
Weight
0.248 lb
Construction
heavy duty precision spherical bearing
Included quantity
1

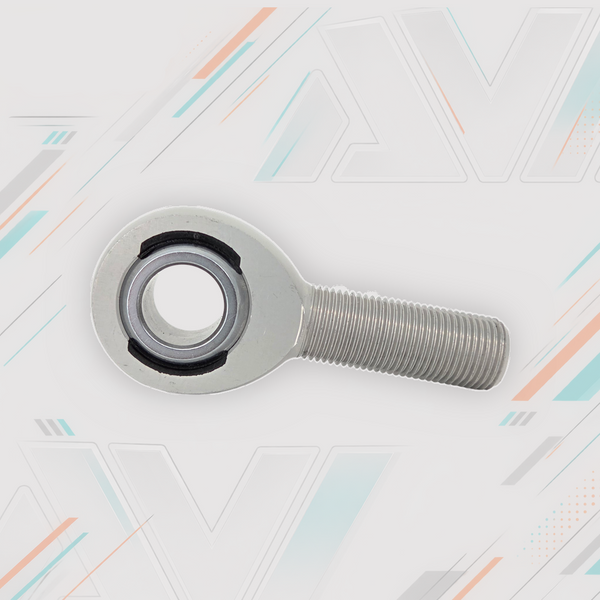

Silver-colored rod end with a circular bearing opening on the left and threaded shank extending right.

Rod End

AML10 7075 Aluminum Rod End - 5/8-18 LH Thread

SKU AVID-AML10AvailableUniversal
Details
Material
Aluminum
Component type
Rod end / heim
Inside diameter
5/8"
Outside diameter
1-1/2"
Width
3/4"
Thread
5/8-18
Thread hand
Left-hand
Centerline length
2.625 in
Thread length
1.625 in
Misalignment angle
16°
Static radial load
8,600 lb
Weight
0.18 lb
Construction
male rod end with self-lubricating race
Included quantity
1

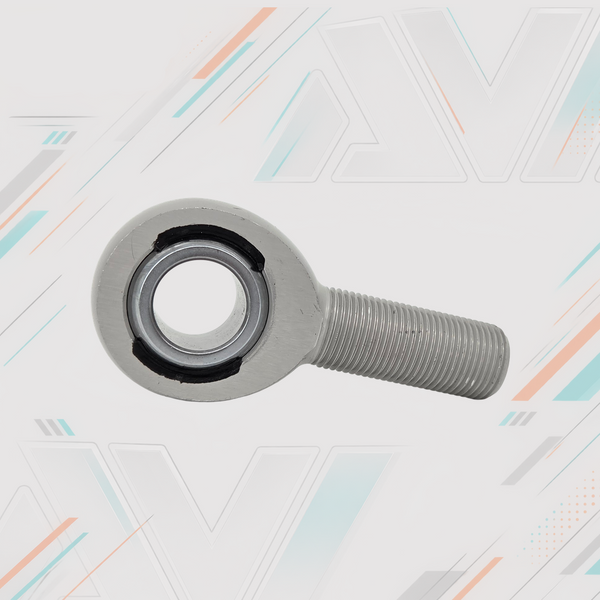

Silver-colored rod end with a circular bearing opening on the left and exposed threaded shank extending right.

Rod End

AML12 7075 Aluminum Rod End - 3/4-16 LH Thread

SKU AVID-AML12AvailableUniversal
Details
Material
Aluminum
Component type
Rod end / heim
Inside diameter
3/4"
Outside diameter
1-3/4"
Width
7/8"
Thread
3/4-16
Thread hand
Left-hand
Centerline length
2.875 in
Thread length
1.75 in
Misalignment angle
14°
Static radial load
13,400 lb
Weight
0.29 lb
Construction
male rod end with self-lubricating race
Included quantity
1

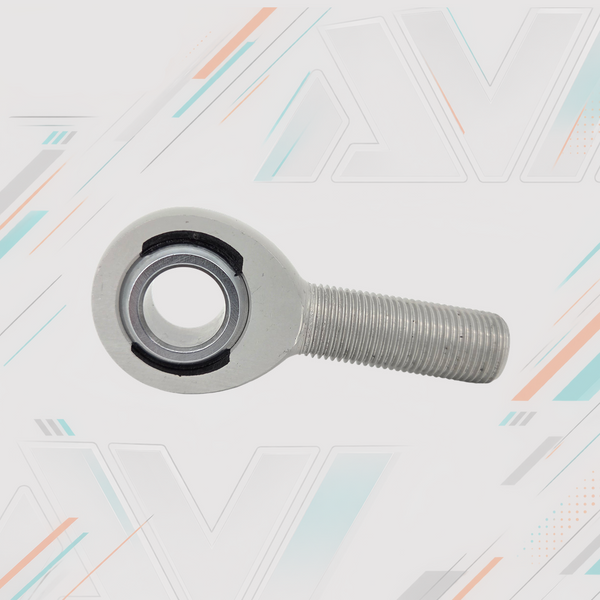

Silver rod end with a circular bearing opening on the left and threaded shank extending right.

Rod End

AMR10 7075 Aluminum Rod End - 5/8-18 RH Thread

SKU AVID-AMR10AvailableUniversal
Details
Material
Aluminum
Component type
Rod end / heim
Inside diameter
5/8"
Outside diameter
1-1/2"
Width
3/4"
Thread
5/8-18
Thread hand
Right-hand
Centerline length
2.625 in
Thread length
1.625 in
Misalignment angle
16°
Static radial load
8,600 lb
Weight
0.18 lb
Construction
male rod end with self-lubricating race
Included quantity
1

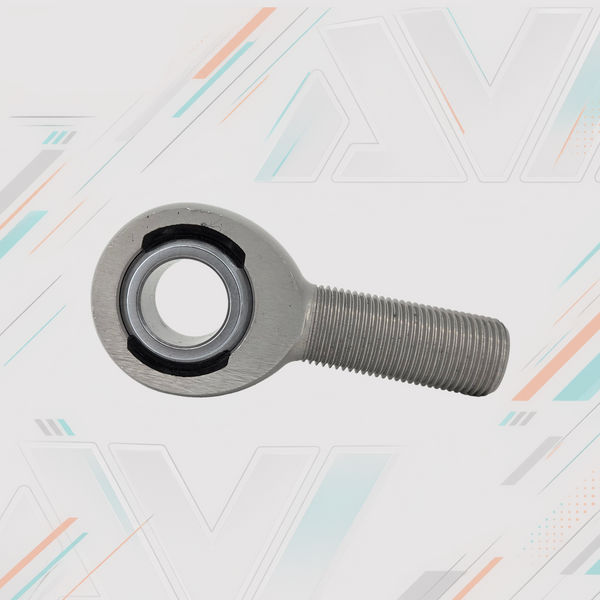

Silver-colored rod end with a circular bearing opening on the left and a threaded shank extending right.

Rod End

AMR12 7075 Aluminum Rod End - 3/4-16 RH Thread

SKU AVID-AMR12AvailableUniversal
Details
Material
Aluminum
Component type
Rod end / heim
Inside diameter
3/4"
Outside diameter
1-3/4"
Width
7/8"
Thread
3/4-16
Thread hand
Right-hand
Centerline length
2.875 in
Thread length
1.75 in
Misalignment angle
14°
Static radial load
13,400 lb
Weight
0.29 lb
Construction
male rod end with self-lubricating race
Included quantity
1
Four uniball bearings in ascending size, shown at an angle on an orange, black and white background.

Uniball

COM08T-F1 PTFE-Lined Steel Uniball, 1/2" ID x 1" OD

SKU AVID-COM08T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
1/2"
Outside diameter
1"
Width
1/2"
Ball diameter
0.781 in
Ball width
0.39 in
Chamfer
0.032 in
Misalignment angle
9.5°
Static radial load
13,250 lb
Weight
0.065 lb
Construction
PTFE-lined COM-T spherical bearing
Included quantity
1

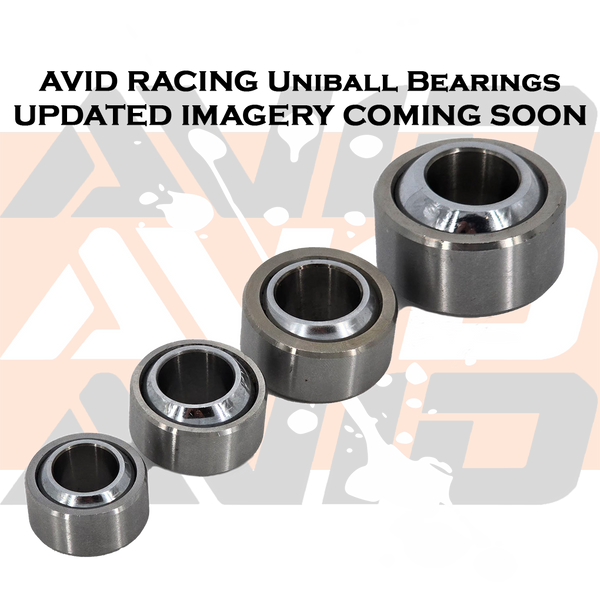

Four uniball bearings in ascending size, shown at an angle on an orange, black and white background.

Uniball

COM10T-F1 PTFE-Lined Steel Uniball, 5/8" ID x 1-3/16" OD

SKU AVID-COM10T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
5/8"
Outside diameter
1-3/16"
Width
5/8"
Ball diameter
0.968 in
Chamfer
0.032 in
Misalignment angle
8.5°
Static radial load
21,280 lb
Weight
0.11 lb
Construction
PTFE-lined COM-T spherical bearing
Included quantity
1
Four uniball bearings in ascending size, shown at an angle on an orange, black and white background.

Uniball

COM12T-F1 PTFE-Lined Steel Uniball, 3/4" ID x 1-7/16" OD

SKU AVID-COM12T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
3/4"
Outside diameter
1-7/16"
Width
3/4"
Ball diameter
1.187 in
Chamfer
0.044 in
Misalignment angle
9°
Static radial load
31,920 lb
Weight
0.204 lb
Construction
PTFE-lined COM-T spherical bearing
Included quantity
1
Four uniball bearings in ascending size, shown at an angle on an orange, black and white background.

Uniball

COM14T-F1 PTFE-Lined Steel Uniball, 7/8" ID x 1-9/16" OD

SKU AVID-COM14T-F1AvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
7/8"
Outside diameter
1-9/16"
Width
7/8"
Ball diameter
1.312 in
Chamfer
0.044 in
Misalignment angle
9.5°
Static radial load
41,960 lb
Weight
0.263 lb
Construction
PTFE-lined COM-T spherical bearing
Included quantity
1

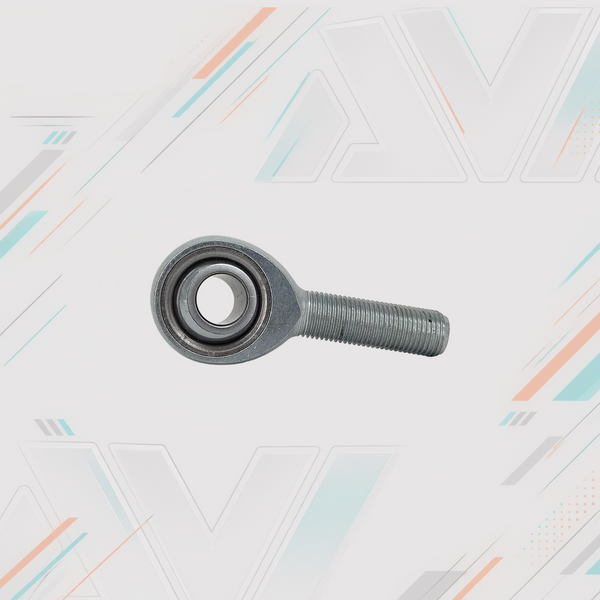

Silver rod end with its bearing opening facing the camera and threaded shank pointing right.

Rod End

JMX08T 3-Piece Chromoly Rod End - 1/2-20 RH Thread

SKU AVID-JMX08TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
1/2"
Outside diameter
1.312 in
Width
0.625 in
Thread
1/2-20
Thread hand
Right-hand
Centerline length
2.438 in
Thread length
1.5 in
Ball diameter
0.937 in
Ball width
0.5 in
Misalignment angle
12°
Static radial load
16,242 lb
Weight
0.25 lb
Construction
3-piece chromoly rod end
Included quantity
1

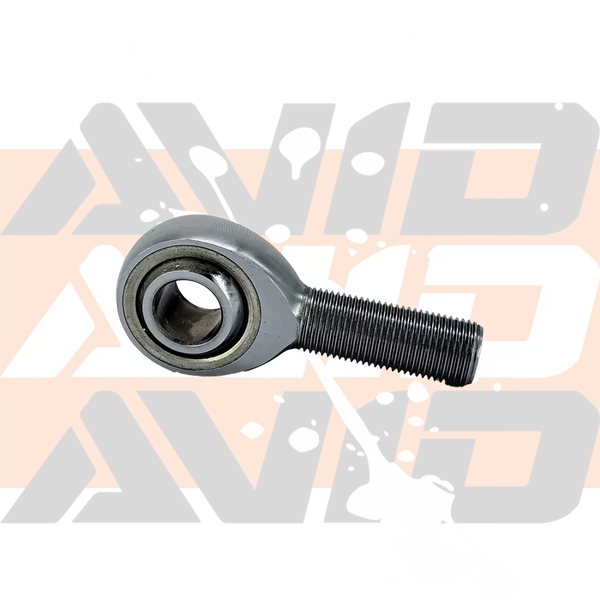

Silver-colored rod end with its bearing opening facing the viewer and threaded shank extending to the right.

Rod End

JMX10T 3-Piece Chromoly Rod End - 5/8-18 RH Thread

SKU AVID-JMX10TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
5/8"
Outside diameter
1-1/2"
Width
3/4"
Thread
5/8-18
Thread hand
Right-hand
Centerline length
2.625 in
Thread length
1.625 in
Ball diameter
1.125 in
Ball width
0.562 in
Misalignment angle
16°
Static radial load
17,959 lb
Weight
0.38 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1

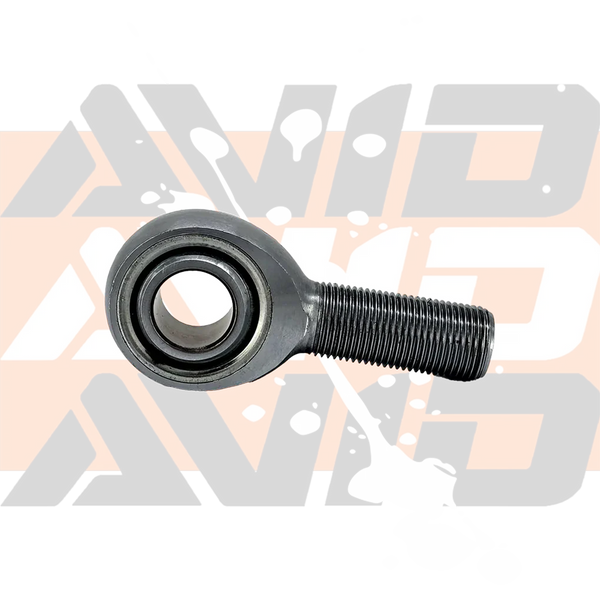

Rod end with a circular bearing opening on the left and exposed threaded shank extending right.

Rod End

JMX12T 3-Piece Chromoly Rod End - 3/4-16 RH Thread

SKU AVID-JMX12TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
3/4"
Outside diameter
1-3/4"
Width
7/8"
Thread
3/4-16
Thread hand
Right-hand
Centerline length
2.875 in
Thread length
1.75 in
Ball diameter
1.312 in
Ball width
0.687 in
Misalignment angle
14°
Static radial load
28,090 lb
Weight
0.6 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1

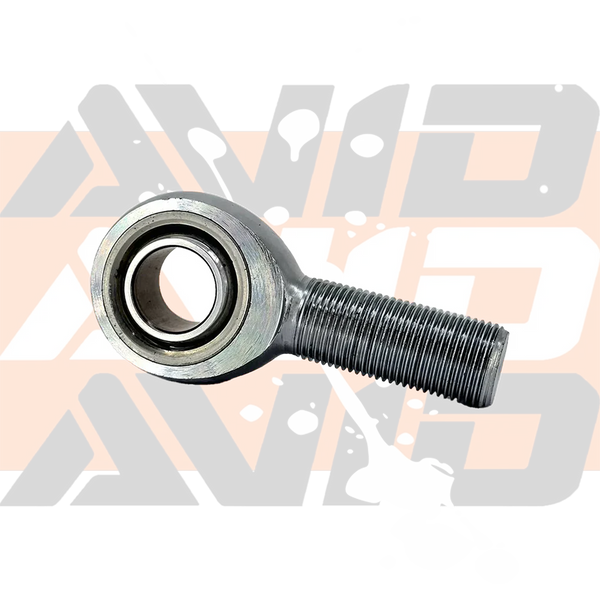

Silver-colored rod end with its bearing opening on the left and threaded shank extending to the right.

Rod End

JMX14T-770 3-Piece Chromoly Rod End - 7/8-14 RH Thread

SKU AVID-JMX14T-770AvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
7/8"
Outside diameter
2"
Width
0.770 in
Thread
7/8-14
Thread hand
Right-hand
Centerline length
3.375 in
Thread length
1.875 in
Ball diameter
1.375 in
Ball width
0.875 in
Misalignment angle
12°
Static radial load
45,051 lb
Weight
0.91 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1

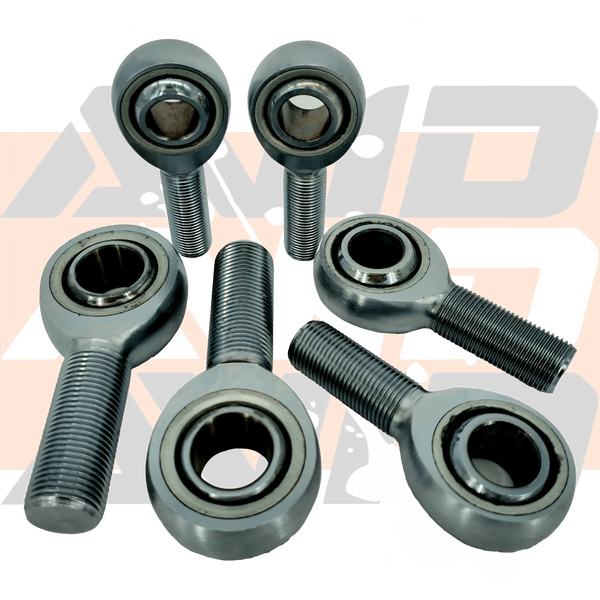

JMXL16T 3-Piece Chromoly Rod End - 1-1/4-12 LH Thread - AVID Racing

Rod End

JMX16T 3-Piece Chromoly Rod End - 1-1/4-12 RH Thread

SKU AVID-JMX16TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
1"
Outside diameter
2.95 in
Width
1-3/8"
Thread
1-1/4-12
Thread hand
Right-hand
Centerline length
4.5 in
Thread length
2.5 in
Ball diameter
1.875 in
Ball width
1.015 in
Misalignment angle
17°
Static radial load
107,182 lb
Weight
2.74 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1

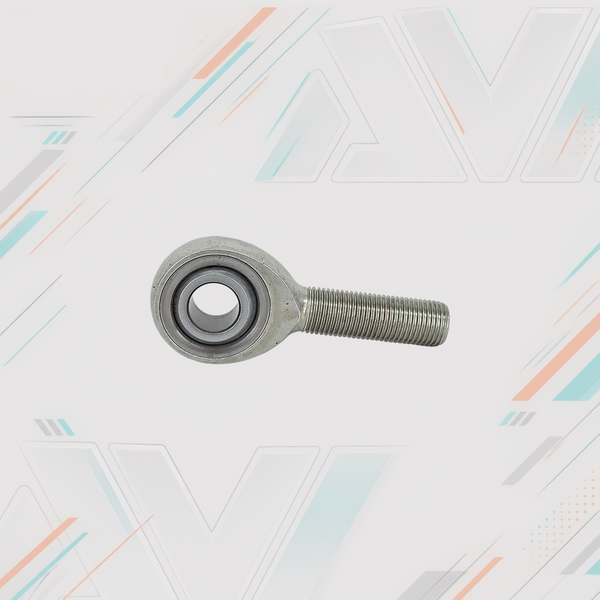

Silver-colored rod end with a visible bearing opening and threaded shank pointing right.

Rod End

JMXL08T 3-Piece Chromoly Rod End - 1/2-20 LH Thread

SKU AVID-JMXL08TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
1/2"
Outside diameter
1.312 in
Width
0.625 in
Thread
1/2-20
Thread hand
Left-hand
Centerline length
2.438 in
Thread length
1.5 in
Ball diameter
0.937 in
Ball width
0.5 in
Misalignment angle
12°
Static radial load
16,242 lb
Weight
0.25 lb
Construction
3-piece chromoly rod end
Included quantity
1

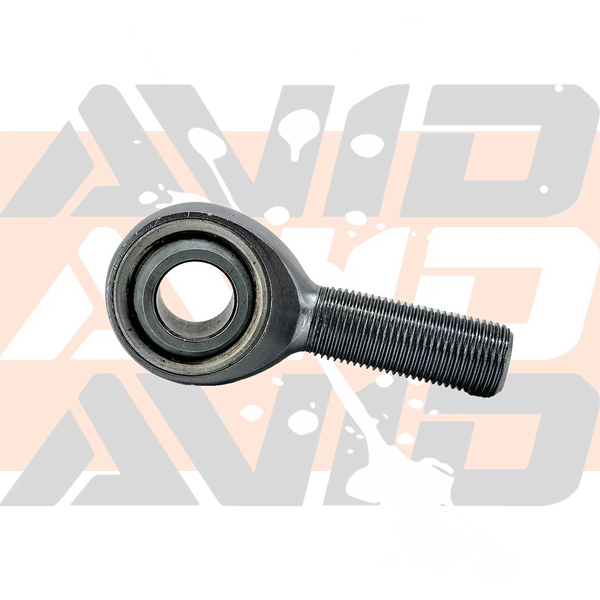

Rod end with a circular bearing opening on the left and a threaded shank extending right against a graphic background.

Rod End

JMXL10T 3-Piece Chromoly Rod End - 5/8-18 LH Thread

SKU AVID-JMXL10TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
5/8"
Outside diameter
1-1/2"
Width
3/4"
Thread
5/8-18
Thread hand
Left-hand
Centerline length
2.625 in
Thread length
1.625 in
Ball diameter
1.125 in
Ball width
0.562 in
Misalignment angle
16°
Static radial load
17,959 lb
Weight
0.38 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1
Rod end shown at an angle with a circular bearing opening on the left and exposed threaded shank on the right.

Rod End

JMXL12T 3-Piece Chromoly Rod End - 3/4-16 LH Thread

SKU AVID-JMXL12TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
3/4"
Outside diameter
1-3/4"
Width
7/8"
Thread
3/4-16
Thread hand
Left-hand
Centerline length
2.875 in
Thread length
1.75 in
Ball diameter
1.312 in
Ball width
0.687 in
Misalignment angle
14°
Static radial load
28,090 lb
Weight
0.6 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1
Silver-colored rod end with its bearing opening on the left and threaded shank extending to the right.

Rod End

JMXL14T-770 3-Piece Chromoly Rod End - 7/8-14 LH Thread

SKU AVID-JMXL14T-770AvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
7/8"
Outside diameter
2"
Width
0.770 in
Thread
7/8-14
Thread hand
Left-hand
Centerline length
3.375 in
Thread length
1.875 in
Ball diameter
1.375 in
Ball width
0.875 in
Misalignment angle
12°
Static radial load
45,051 lb
Weight
0.91 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1
JMXL16T 3-Piece Chromoly Rod End - 1-1/4-12 LH Thread - AVID Racing

Rod End

JMXL16T 3-Piece Chromoly Rod End - 1-1/4-12 LH Thread

SKU AVID-JMXL16TAvailableUniversal
Details
Material
Chromoly
Component type
Rod end / heim
Inside diameter
1"
Outside diameter
2.95 in
Width
1-3/8"
Thread
1-1/4-12
Thread hand
Left-hand
Centerline length
4.5 in
Thread length
2.5 in
Ball diameter
1.875 in
Ball width
1.015 in
Misalignment angle
17°
Static radial load
107,182 lb
Weight
2.46 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1
Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR10 5/8" Uniball Retaining Ring

SKU AVID-UBSR10AvailableUniversal
Details
Component type
Retaining ring
Uniball size
5/8"
Included quantity
1
Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR10L 5/8" Uniball Retaining Ring

SKU AVID-UBSR10LAvailableUniversal
Details
Component type
Retaining ring
Uniball size
5/8"
Retaining ring fit diameter
1.3125 in
Included quantity
1
Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR10S 5/8" Uniball Retaining Ring

SKU AVID-UBSR10SAvailableUniversal
Details
Component type
Retaining ring
Uniball size
5/8"
Retaining ring fit diameter
1.1875 in
Included quantity
1
Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR12 3/4" Uniball Retaining Ring

SKU AVID-UBSR12AvailableUniversal
Details
Component type
Retaining ring
Uniball size
3/4"
Included quantity
1

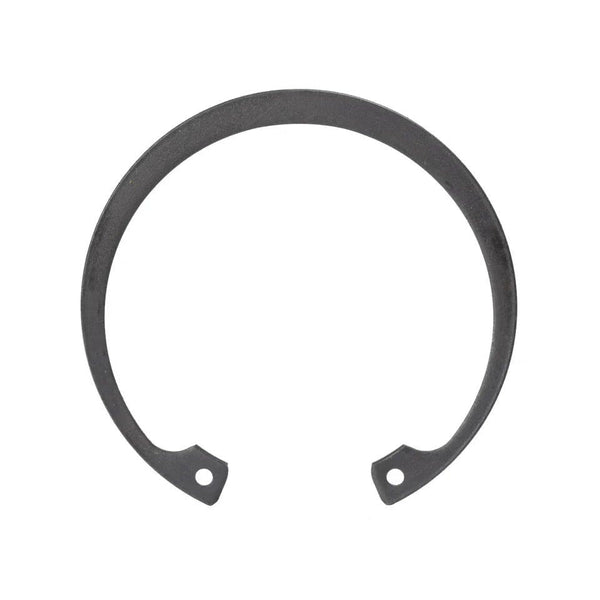

Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR12L 3/4" Uniball Retaining Ring

SKU AVID-UBSR12LAvailableUniversal
Details
Component type
Retaining ring
Uniball size
3/4"
Retaining ring fit diameter
1.5 in
Retaining ring groove OD
1.62 in
Retaining ring groove width
0.052 in
Included quantity
1
Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR12S 3/4" Uniball Retaining Ring

SKU AVID-UBSR12SAvailableUniversal
Details
Component type
Retaining ring
Uniball size
3/4"
Retaining ring fit diameter
1.375 in
Included quantity
1

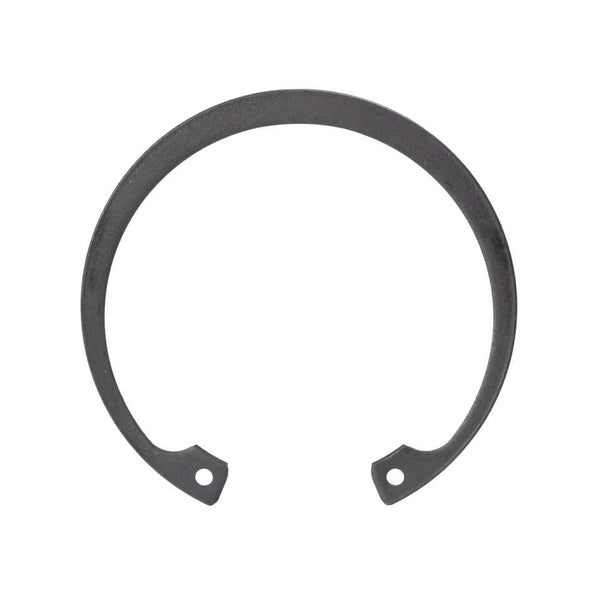

Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR14 7/8" Uniball Retaining Ring

SKU AVID-UBSR14AvailableUniversal
Details
Component type
Retaining ring
Uniball size
7/8"
Retaining ring fit diameter
1.625 in
Retaining ring groove OD
1.74 in
Retaining ring groove width
0.065 in
Included quantity
1
Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR14S 7/8" Uniball Retaining Ring

SKU AVID-UBSR14SAvailableUniversal
Details
Component type
Retaining ring
Uniball size
7/8"
Retaining ring fit diameter
1.5 in
Retaining ring groove OD
1.62 in
Retaining ring groove width
0.052 in
Included quantity
1
Dark retaining ring shown face-on, with an opening at the bottom and a circular hole in each end tab.

Retaining Ring

UBSR16 1" Uniball Retaining Ring

SKU AVID-UBSR16AvailableUniversal
Details
Component type
Retaining ring
Uniball size
1"
Retaining ring fit diameter
2.125 in
Retaining ring groove OD
2.245 in
Retaining ring groove width
0.08 in
Included quantity
1

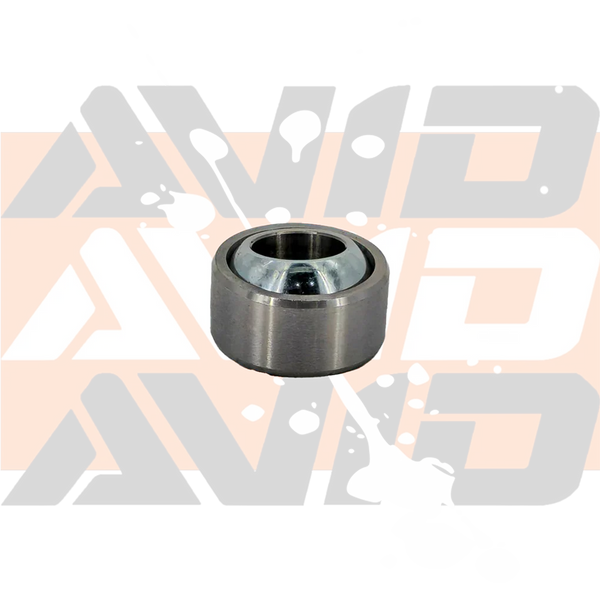

AVID Racing Chromoly Uniball 5/8" ID 1-3/16" OD

Uniball

WPB10T Wide Series Chromoly Uniball, 5/8" ID x 1-3/16" OD

SKU AVID-WPB10TAvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
5/8"
Outside diameter
1-3/16"
Width
3/4"
Ball diameter
1.062 in
Ball width
0.567 in
Misalignment angle
12°
Static radial load
29,000 lb
Static axial load
6,130 lb
Dynamic oscillating radial load
20,250 lb
Weight
0.16 lb
Construction
wide-series spherical bearing
Equivalent crossover
WSSX10T
Included quantity
1
AVID Racing Chromoly Uniball 3/4" ID 1-3/8" OD

Uniball

WPB12T Wide Series Chromoly Uniball, 3/4" ID x 1-3/8" OD

SKU AVID-WPB12TAvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
3/4"
Outside diameter
1-3/8"
Width
7/8"
Ball diameter
1.25 in
Ball width
0.63 in
Misalignment angle
13°
Static radial load
37,000 lb
Static axial load
7,730 lb
Dynamic oscillating radial load
26,200 lb
Weight
0.24 lb
Construction
wide-series spherical bearing
Equivalent crossover
WSSX12T
Included quantity
1
AVID Racing Chromoly Uniball Bearing – 7/8" ID, 1-5/8" OD

Uniball

WPB14T Wide Series Chromoly Uniball, 7/8" ID x 1-5/8" OD

SKU AVID-WPB14TAvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
7/8"
Outside diameter
1-5/8"
Width
7/8"
Ball diameter
1.375 in
Ball width
0.755 in
Misalignment angle
6°
Static radial load
65,200 lb
Static axial load
10,800 lb
Dynamic oscillating radial load
33,600 lb
Weight
0.35 lb
Construction
wide-series spherical bearing
Equivalent crossover
WSSX14T
Included quantity
1

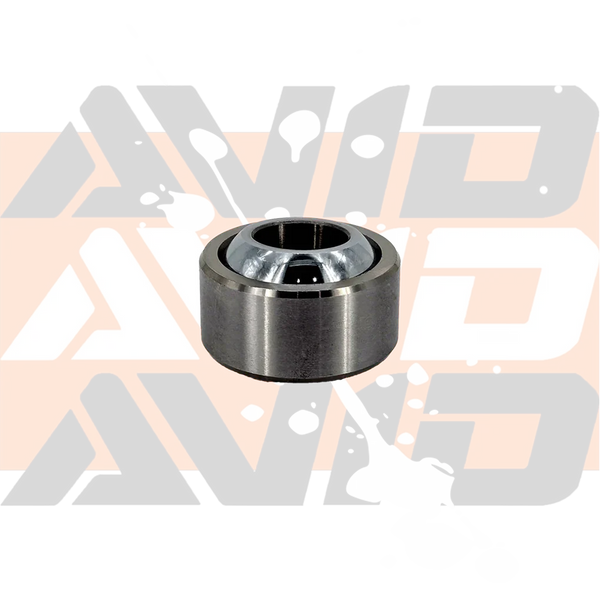

Chromoly Uniball 1" ID 2-1/8" OD | AVID Racing

Uniball

WPB16T Wide Series Chromoly Uniball, 1" ID x 2-1/8" OD

SKU AVID-WPB16TAvailableUniversal
Details
Material
Chromoly
Component type
Spherical bearing / uniball
Inside diameter
1"
Outside diameter
2-1/8"
Width
1-3/8"
Ball diameter
1.875 in
Ball width
1.005 in
Misalignment angle
12°
Static radial load
104,000 lb
Static axial load
19,300 lb
Dynamic oscillating radial load
56,250 lb
Weight
0.97 lb
Construction
wide-series spherical bearing
Equivalent crossover
WSSX16T
Included quantity
1
