JMXL10T 3-Piece Chromoly Rod End - 5/8-18 LH Thread

AVID Racing Rod End SKU AVID-JMXL10T

Purchase Options

Price $24.00

Available to order

Total $24.00 Current selection

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

My AVID Garage

Save to Planned Build

JMXL10T 3-Piece Chromoly Rod End - 5/8-18 LH Thread | AVID Racing

Saving does not reserve inventory, place an order, or begin a payment plan.

Loading your Garage…
Contact AVID About This Product

Product Details

Overview & Included Items

JMXL10T 3-Piece Chromoly Rod End - 5/8-18 LH Thread | AVID Racing

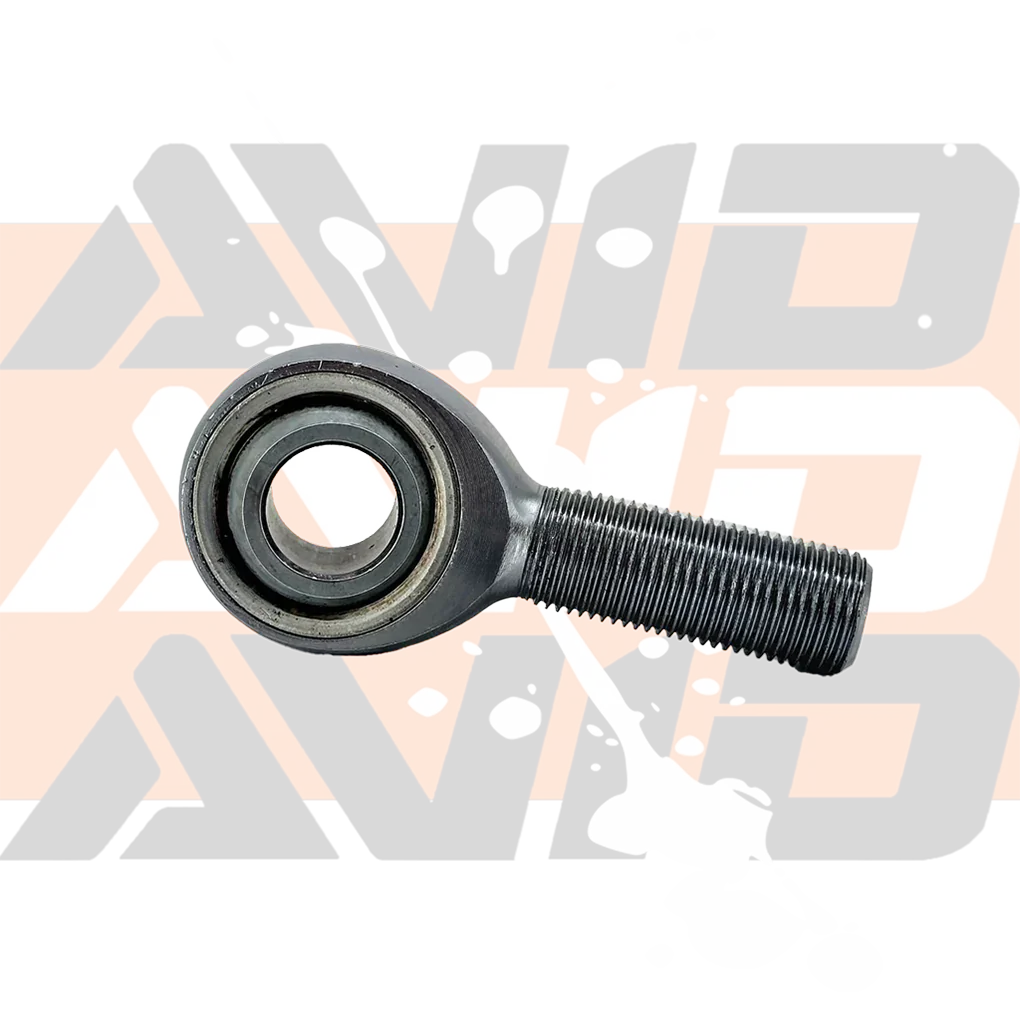

JMXL10T is a 3-piece male chromoly rod end with a 5/8-18 left-hand thread and a 0.6250 inch bore.

Its PTFE-lined alloy-steel construction uses a heat-treated, hard-chrome-plated ball and a heat-treated, zinc-plated and chromate-treated body and race. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.

Key Specs

  • Part Number: JMXL10T
  • Product Type: Rod End
  • Bearing ID / Bore: 0.625 in
  • Bearing OD / Head Diameter: 1.5 in
  • Bearing Width / Ball Width: 0.75 in / 0.562 in
  • Ball Diameter / Ball Radius Reference: 1.125 in ball diameter
  • Thread Size / Pitch: 5/8-18
  • Thread Direction: Left-hand
  • Thread Length: 1.625 in
  • Centerline Length: 2.625 in
  • Misalignment Angle: 16 degrees
  • Static Radial Load Rating: 17,959 lb
  • Material: alloy steel / chromoly rod-end construction
  • Finish: zinc-plated chromate body and race; hard-chrome-plated ball
  • Style: 3-piece male rod end, PTFE lined
  • Included: One rod end
  • Approx. Weight: 0.38 lb

Fitment Notes

Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.

Specifications
Material
Chromoly
Component type
Rod end / heim
Inside diameter
5/8"
Outside diameter
1-1/2"
Width
3/4"
Thread
5/8-18
Thread hand
Left-hand
Centerline length
2.625 in
Thread length
1.625 in
Ball diameter
1.125 in
Ball width
0.562 in
Misalignment angle
16°
Static radial load
17,959 lb
Weight
0.38 lb
Construction
3-piece male rod end, PTFE lined
Included quantity
1
