AMR12 7075 Aluminum Rod End - 3/4-16 RH Thread

AVID Racing Rod End SKU AVID-AMR12

Purchase Options

Price $20.00

Available to order

Total $20.00 Current selection

Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.

My AVID Garage

Save to Planned Build

AMR12 7075 Aluminum Rod End - 3/4-16 RH Thread | AVID Racing

Saving does not reserve inventory, place an order, or begin a payment plan.

Loading your Garage…
Contact AVID About This Product

Product Details

Overview & Included Items

AMR12 7075 Aluminum Rod End - 3/4-16 RH Thread | AVID Racing

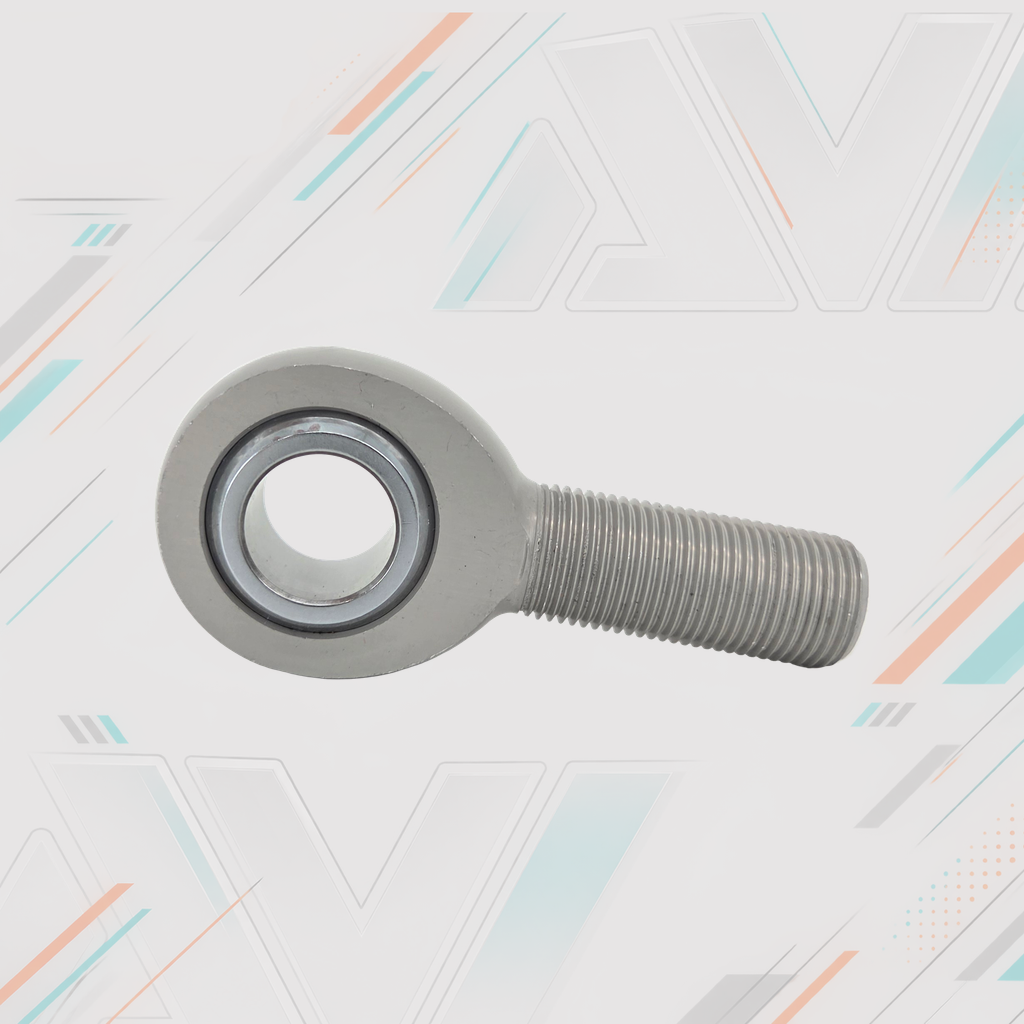

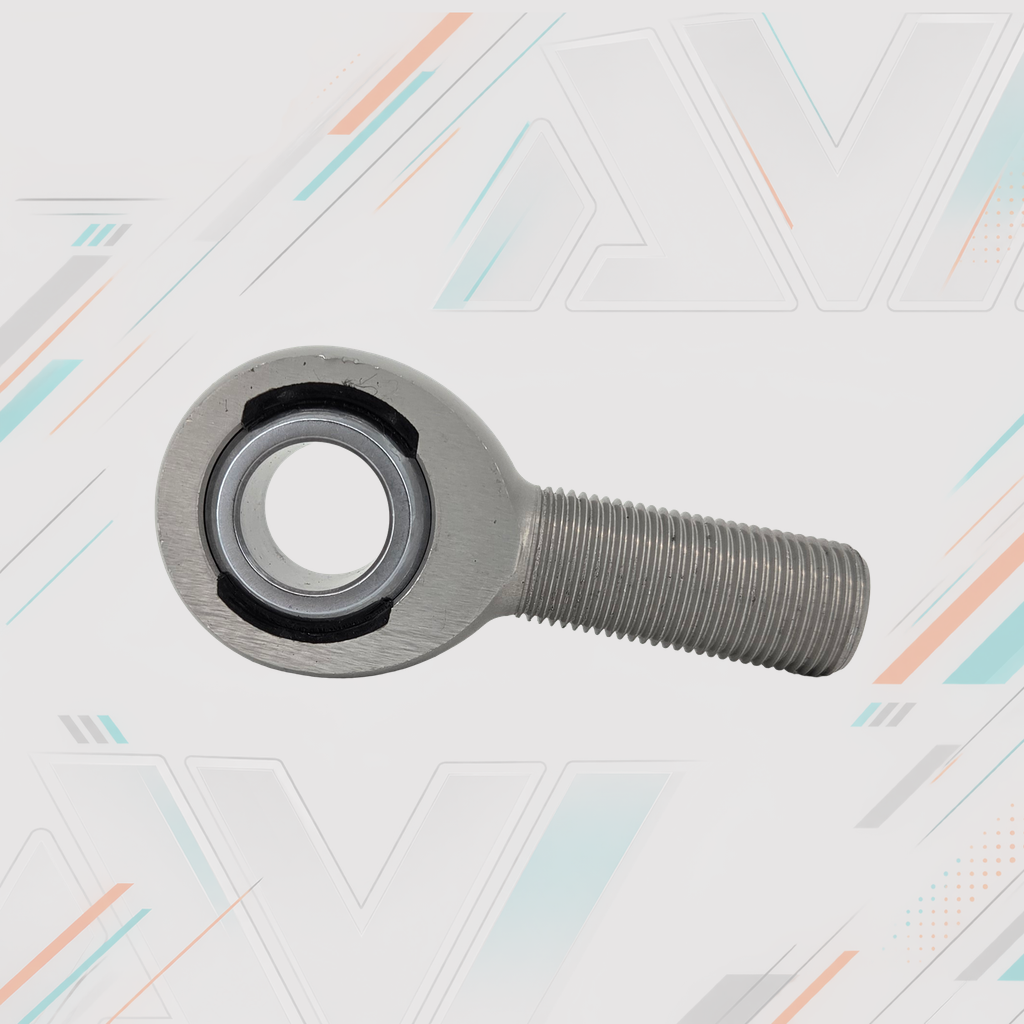

AMR12 is a 7075 aluminum rod end with a 3/4-16 right-hand thread and a 0.7500 inch bore.

Its aluminum body and self-lubricating race are intended for rods, links, or adjusters that match the listed bore, thread, and rod-end dimensions. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.

Key Specs

  • Part Number: AMR12
  • Product Type: Rod End
  • Bearing ID / Bore: 0.75 in
  • Bearing OD / Head Diameter: 1.75 in
  • Bearing Width / Ball Width: 0.875 in
  • Thread Size / Pitch: 3/4-16
  • Thread Direction: Right-hand
  • Thread Length: 1.75 in
  • Centerline Length: 2.875 in
  • Misalignment Angle: 14 degrees
  • Static Radial Load Rating: 13,400 lb
  • Material: 7075 aluminum
  • Style: male rod end with self-lubricating race
  • Included: One rod end
  • Approx. Weight: 0.29 lb

Fitment Notes

Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.

Specifications
Material
Aluminum
Component type
Rod end / heim
Inside diameter
3/4"
Outside diameter
1-3/4"
Width
7/8"
Thread
3/4-16
Thread hand
Right-hand
Centerline length
2.875 in
Thread length
1.75 in
Misalignment angle
14°
Static radial load
13,400 lb
Weight
0.29 lb
Construction
male rod end with self-lubricating race
Included quantity
1
