Titanium Adjustable Limit Strap Clevis, 7/16-20 x 5 in
Purchase Options
Final fulfillment timing is confirmed after checkout. Contact AVID before ordering if you have a firm deadline.
Product Details
Overview & Included Items

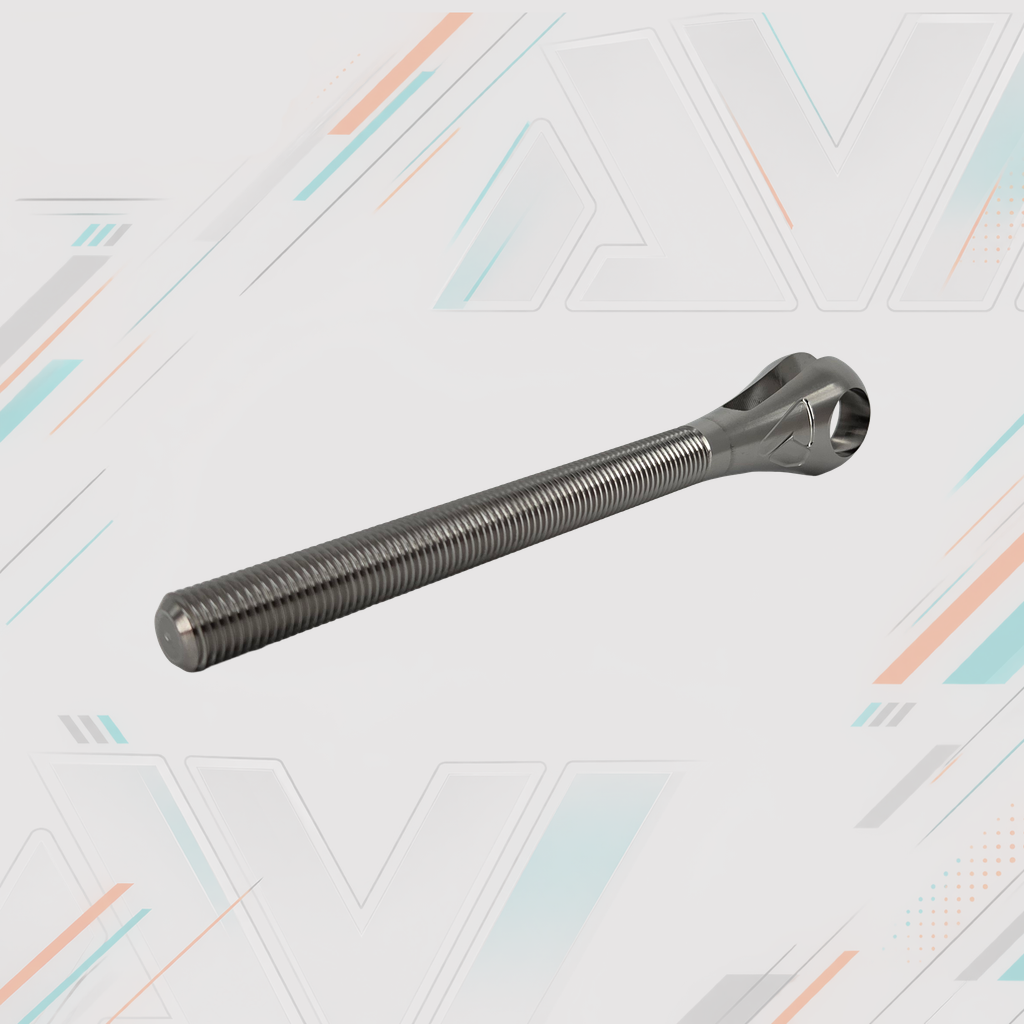

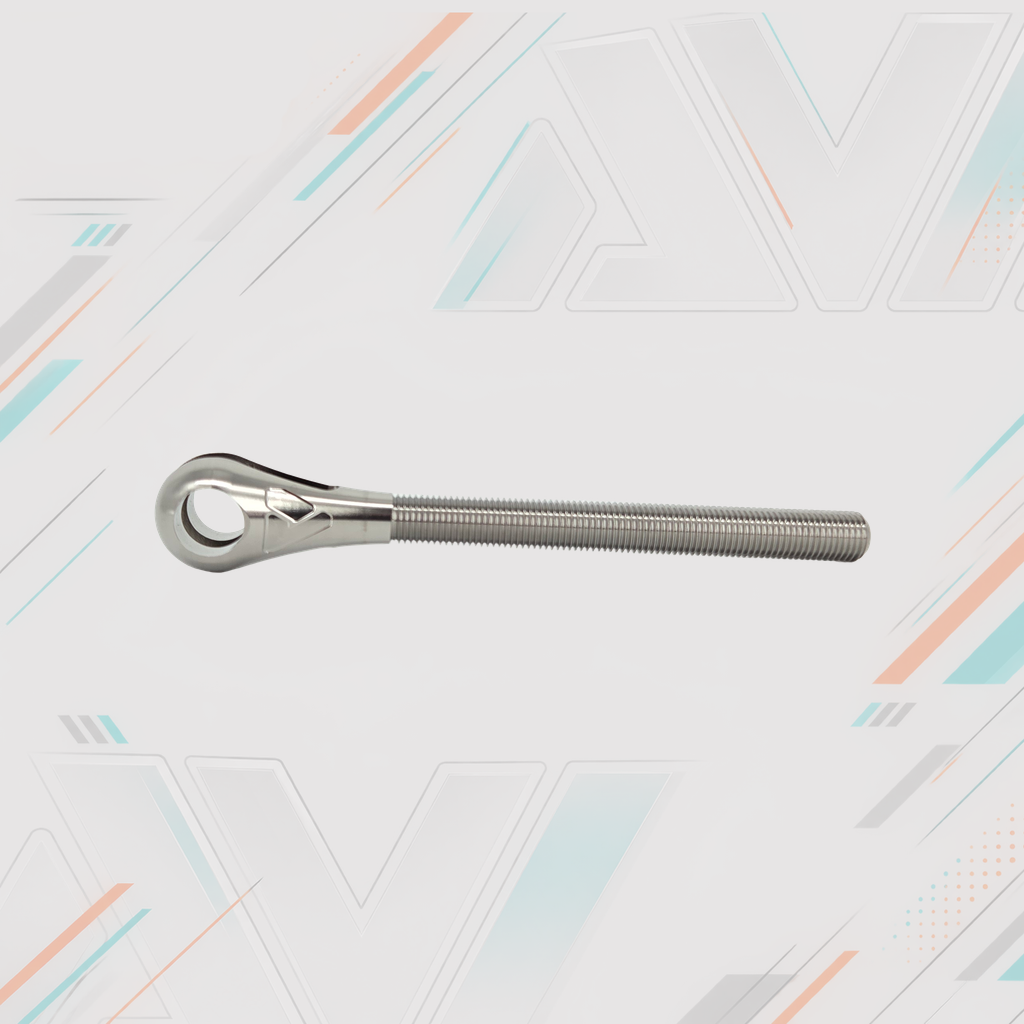

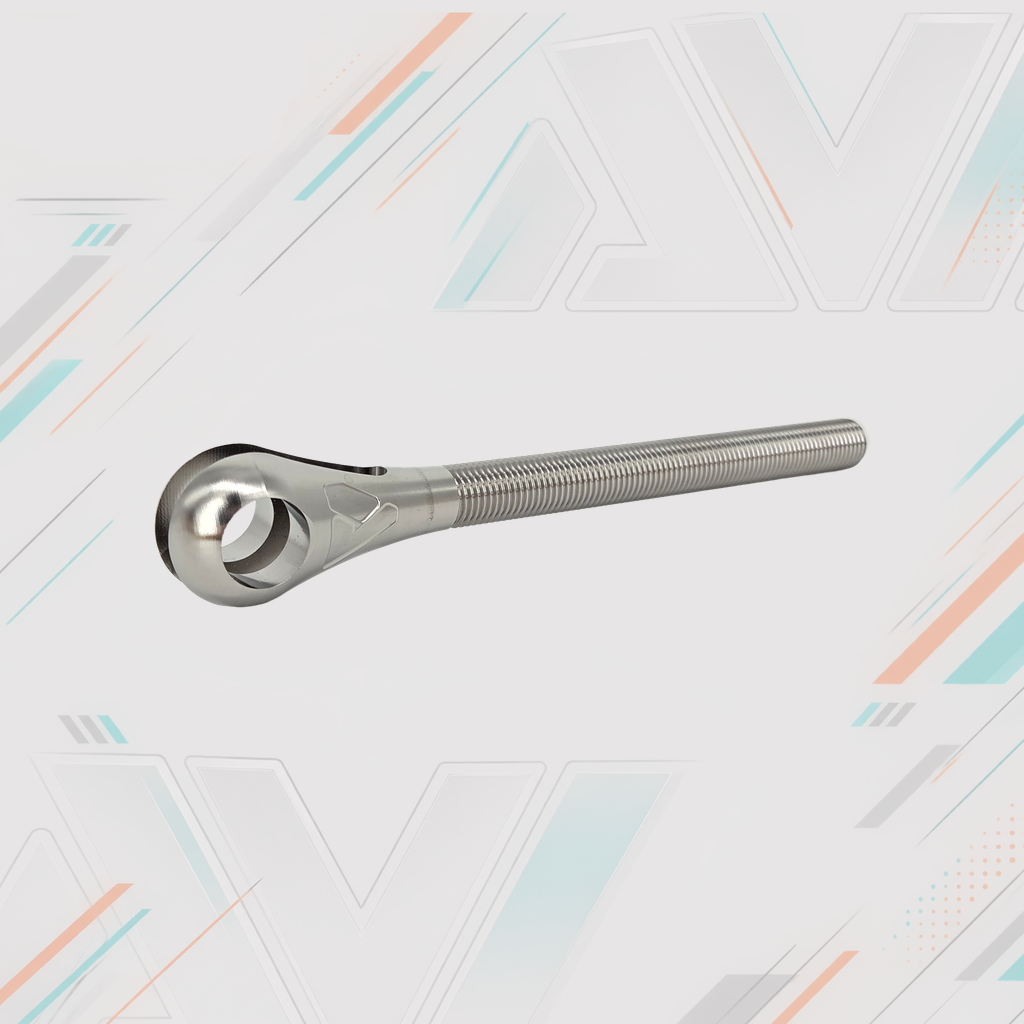

Titanium Adjustable Limit Strap Clevis, 7/16-20 x 5 in
This AVID adjustable titanium clevis gives a properly matched limit strap assembly a threaded adjustment point for final strap position and slack. It has a 7/16-20 thread, 5 inch overall length, and 4 inch thread length.
Specifications
- Part Number: 716-TLSC-5x4-20
- Component: Adjustable Limit Strap Clevis
- Thread Size: 7/16-20
- Overall Length: 5 in
- Thread Length: 4 in
- Material: Titanium
- Quantity: One clevis
Fitment and Use
This is a universal component only when every interface matches. Verify the 7/16-20 thread, 5 inch overall length, 4 inch thread length, clevis width, pin size, available clearance, and complete mounting stack before ordering.
Installation Notes
Set the clevis position for the required strap slack and droop, then secure the threaded interface using the assembly manufacturer's specified retention method and torque. Do not combine anti-seize and threadlocker on the same interface.
Specifications
- Titanium family
- Hardware
- Specialty type
- Limit strap clevis
- Component type
- Specialty hardware
- Measurement system
- SAE
- Thread designation
- 7/16-20
- Nominal diameter
- 0.4375 in
- Threads per inch
- 20 TPI
- Overall length
- 5 in
- Thread length
- 4 in
- Material
- Titanium
- Pieces per product
- 1
- Pack quantity
- 1
- Unit of sale
- Each
- Specification status
- Verified
